Electron Beam System Options

EVOBEAM’s systems are available with a multitude of tooling or fixture options in order to enable efficient and repeatable handling of workpieces throughout the beam machining process.

Tooling Options Electron Beam Systems

Y- / or X-Y-axis table

A unidirectional table movement combined with movable external gun allows for exceptionally compact chambers and rapid pump down. X-Y-tables are available, but require for the same work envelope much larger chambers and longer pump down.

Run-out platform for table

External rails matching the in-chamber rails facilitate moving the table, with tooling and workpiece attached, in and out of the vacuum chamber. This can be extended to pallet exchange system.

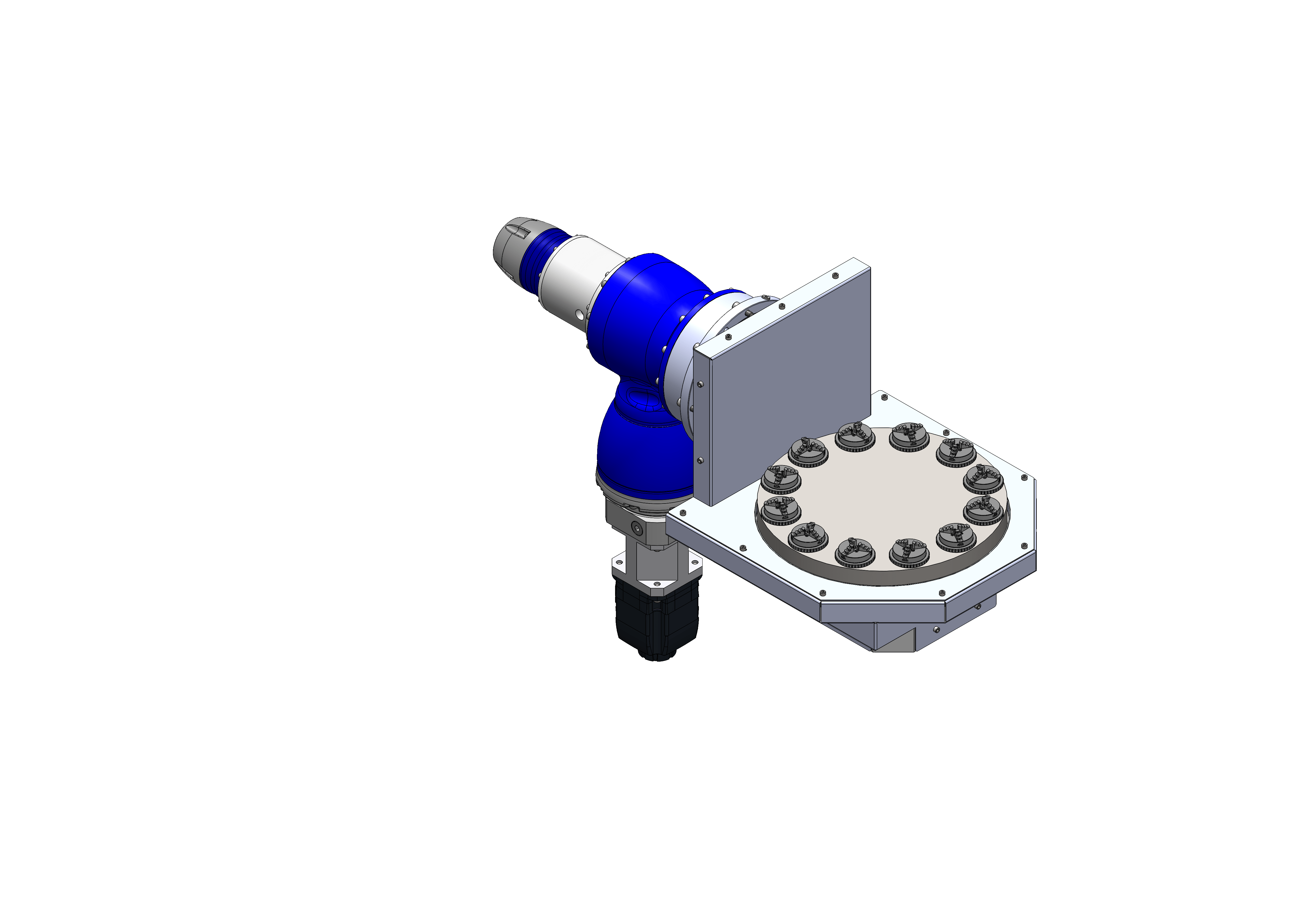

Rotary indexing table with multi-spindle

Multi-spindle tooling optimizes the utilization of a universal chamber machine which always requires a hard vacuum. Partial vacuum welding is often more productive with a single piece flow.

Rotary indexing table

A rotary indexing table can increase productivity as it parallelizes the un-/ loading to welding. With a load lock even the evacuation can be parallelized.

Rotary tilt table

The rotary tilt table allows for welding of complex parts in one evacuation cycle. Combined with X-Y-Z-linear movement 5-axis simultaneous welding is possible.

Rotational A-Axis with tailstock (optional)

A multitude of tooling or fixture combinations enable efficient and repeatable handling of workpieces throughout the beam machining process.

Special fixtures upon request

Special fixtures and tooling can be designed and supplied to meet your specific requirements.

Electron Beam Systems Functional Options

A wide range of functional options can enhance the capabilities and flexibility during beam set-up and operation.

Functional Options
 Digital Electron Optics Package
  – incl. Electron Optical Monitoring / Still Images
  – incl. Electron Optical Monitoring / Video
  – inkl. Electron Optical Joint Teach-In & Replay
  – incl. Automatic Seam Tracking
  – incl. Automated Beam Alignment & Stigamization
  – inkl. Automatic Power Density Measurement
 Data Logging System
 Data Record Management System
 Marking of Workpiece
 Deflection Pattern Designer
 Cathode Identification & Heating
 Automatic Beam Current Calibration
 CNC-Repair Welding Routine
 Dynamic Focus
 Pulsed Beam
